Mold and Platen Thermal Insulation
Polyply BluTherm HT-1100 laminates are glass reinforced
compression molded
sheets which offer an energy efficient, cost effective, low thermal conductive,
high
heat resistant, high compression strength insulation material that resists
fluids and
requires no maintenance.
Polyply Blutherm is micro ground to tolerances of +/- .002"
| Typical Properties
|

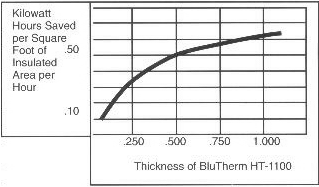

Energy Savings vs Insulation Thickness Mold Temperature at 300ºF
Short Payback
Using ½" BluTherm at a mold temperature of300ºF and mold base area of 4 square feet, you can expect to save over 31,000 BTU's per hour. This translates to over $900 per year energy savings if you are using steam or nearly $4500 per year savings if using electric
|
*Other sheets sizes are available upon request; minimums may apply. Special
thicknesses from ¼" to 1" are available; minimum quantities apply.
Unless otherwise indicated, all properties published are based on tests performed
on standard ASTM test samples and according to ASTM test methods. Values shown
are for test samples made from production materials and are believed to be typical.
No warranty is expressed or implied.
